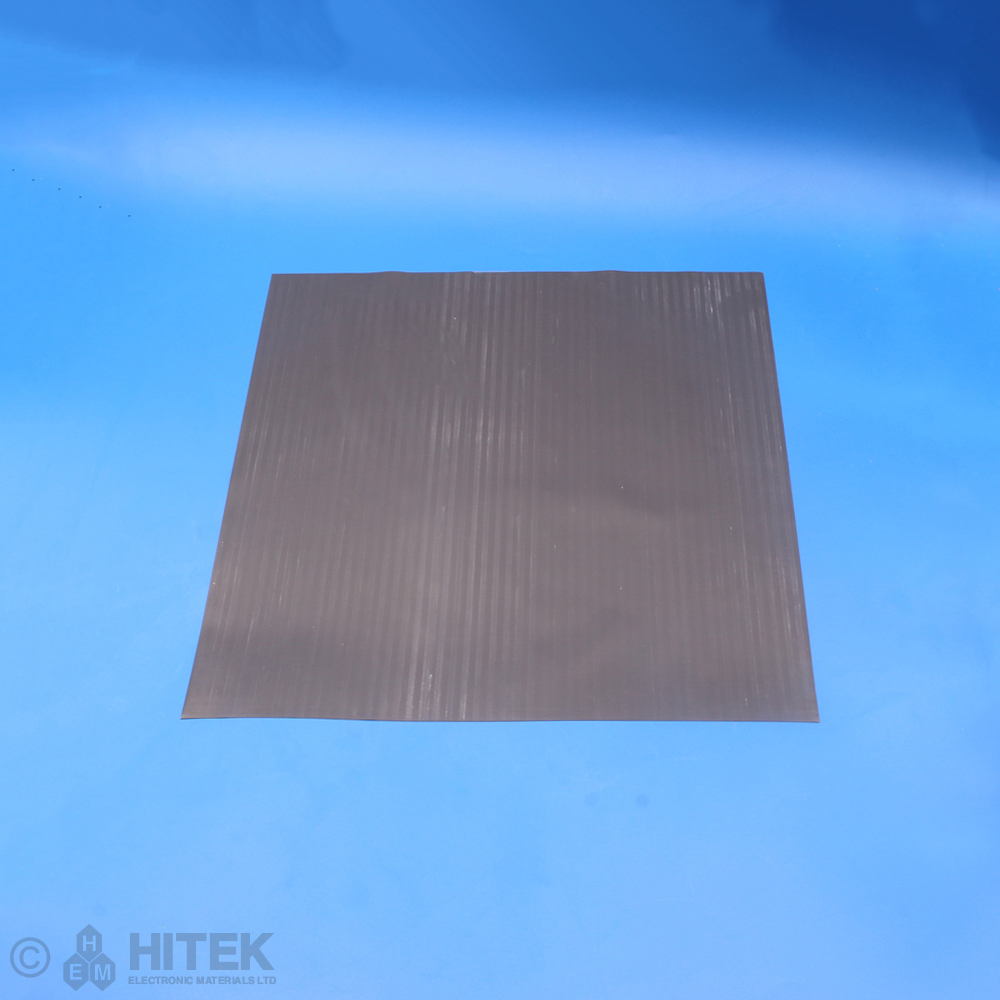

BERGQUIST SIL PAD TSP 1800
SKU: TSP1800
Price range: $38.02 through $66.21 ex VAT
- Thermal impedance: 0.53℃-in²/W @ 50 psi.
- Exceptional thermal performance at lower application pressures.
- Smooth and non-tacky on both sides for easy re-positioning, ease of use and assembly error reduction.
- Superior breakdown voltage and surface wet out values.
- Designed for applications where electrical isolation is critical.
- Excellent cut-through resistance, designed for screw and clip mounted applications.
BERGQUIST SIL PAD TSP 1800 is a premium, silicone-based material featuring a smooth and highly compliant surface. Reinforced with glass fibre for superior cut-through resistance, it is specifically designed for applications where electrical isolation is critical, and mounting is achieved via screws or clips. The material excels across a wide pressure range, providing exceptional thermal performance (0.53°C-in²/W at 50 psi) by ensuring maximum surface contact even at lower application pressures.
Both sides of the pad are non-tacky, which allows for easy re-positioning during assembly and helps reduce production errors. This smooth finish also contributes to superior breakdown voltage and surface “wet-out” values, which are vital for automotive control modules, motor controls, and audio amplifiers.
Whether used for discrete devices or sophisticated telecommunications hardware, TSP 1800 offers a durable and high-performing interface that maintains stable thermal and electrical properties between -60°C and 180°C.
-
Select your product options above to see the downloads available.
-
Weight N/A Part Number SP1200-0.009-00-1212, SP1200-0.012-00-1212
-
